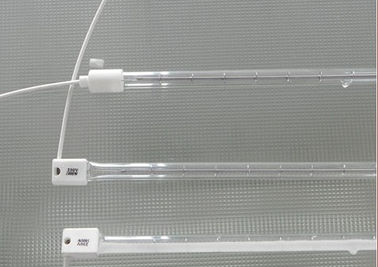

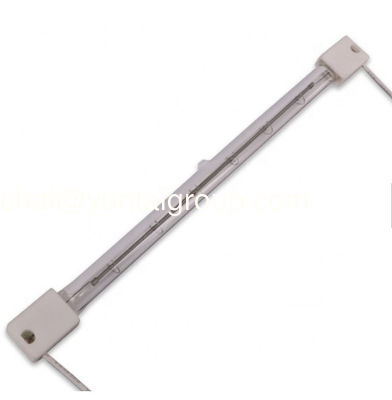

Infrared halogen heating lamp heat lamp quartz tube price 400v 2500w for PET blowing machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Quartz Tube | Life Time: | 3000-8000hrs |
|---|---|---|---|
| Watte: | 150w-2000w | Volt: | 110v,220v,360v,480v |
| Length: | 200-1800mm | Diameter: | 10,12,14,15,18,20mm |
Features of far infrared quartz tube:
Halogen type, avoid blackening of the tube and consequently infrared depreciation through their whole life time
High-power, high-efficiency heat source
Instant heat
Easy control
Economical
Low maintenance
Environment Friendly
Clean, safe heating
5000 hours life time
Horizontal or universal burning position
| Application of far infrared quartz tube: |
| Paint drying in tunnels and body shopd |
| Plastics thermoforming |
| Heating of food and keeping warm |
| Paper drying in paper mills |
| Heat sterilization |
| Drying of lacquer, printing inks |
| Pre-heating of wood prior to lacquering |
| Blowing of PET bottles |
Advantage of far infrared quartz tube:
No poison,no public harm,no pollution and can protect environment effectively
Through a special kind kind of technique on the surface of the lamp,plating multiplayer gold looks attractive and durable
Can resist high temperature(800°C)
Customized size is available.
Halogen (short wave) Infrared Heat Lamp
1. Most of the spectrum is located near the near-infrared shortwave area.
2. High power output, the maximum load power line is more than 100W/cm, plane maximum output power can reach 1000 kw/m2.
3. Efficient and durable gold reflector or ceramic reflector, the reflection efficiency is as high as 80-95%. only hear the target direction can save large amount of energy.
4. Short heating time, especially suitable for rapid high temperature heating.
Carbon Fiber (Medium Wave) Infrared Heating Lamp
1. Light of Life:
Excellent Health care function, especially good for activating human body cell, improve blood circulation, accelerate metabolism, strengthen immunity, no electromagnetic field produced, and harmless to human bodies.
2. Energy saving and environmental protection with long life:
The carbon fiber heating element is a kind of pure black material, which has the advantages of rapid warming, tiny thermal hysteretic, even heating. Far distance of heat radiation transfer and quick speed of heat exchange. It’s average life is 6000 hours and the luminous flux is far less than the mental electric heating tubes. The electric conversion efficiency can reach more than 98%. It can heat in 1 or 2 seconds and after 5 seconds, the surface temperature can reach 300-700. Under the condition of same power and volume, compare with other mental or ceramic electric heating tubes, the carbon fiber quartz electric heating tube spends less time to reach the rated temperature.
3. Electrical stable performance:
In the process of frequent starts up, shuts down and lone time continuously work and the power keeps in a certain tolerance range stable, it won’t produce any instantaneous electric current shock.
